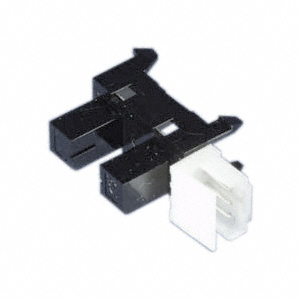

GP1S73PJ000F
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More
Sharp Microelectronics GP1S73PJ000F is a through-beam optical sensor module featuring a phototransistor output. This component is designed for applications requiring precise detection within a 0.197" (5mm) sensing distance. It offers a collector current (Ic) of up to 20 mA and a forward current (If) of up to 50 mA, with a collector-emitter breakdown voltage of 35 V. The module utilizes a snap-in mounting type for straightforward integration. With response times of 3µs and 4µs, it is suitable for high-speed sensing operations. Typical applications include automation, industrial control systems, and office equipment. The GP1S73PJ000F is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Connector |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Snap-In |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 3µs, 4µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
