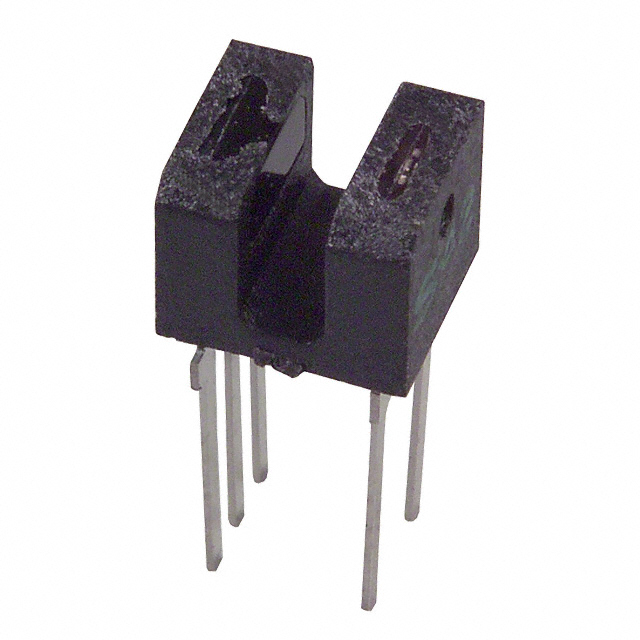

GP1S39
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More
Sharp Microelectronics GP1S39 is a through-beam optical sensor with a phototransistor output. This component features a compact PCB mount package and a sensing distance of 0.059 inches (1.5mm). Designed for through-hole mounting, it operates within an ambient temperature range of -25°C to 85°C. The GP1S39 supports a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA, with a collector-emitter breakdown voltage (Vce) of 35 V. Its response time is specified at 50µs for both rise and fall. This sensor is suitable for applications in industrial automation and consumer electronics where precise non-contact detection is required.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.059"" (1.5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 50µs, 50µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
