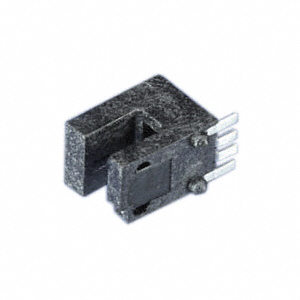

GP1S25
SENSOR OPT SLOT PHOTOTRANS 4SMDManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More
The Sharp Microelectronics GP1S25 is a through-beam optical sensor featuring a phototransistor output. This surface-mount component, housed in a 4-SMD package, offers a sensing distance of 0.063 inches (1.6mm). It is designed for applications requiring precise detection of objects interrupting an optical path. Key electrical specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA. The collector emitter breakdown voltage is rated at 35 V. With a response time of 35µs, the GP1S25 is suitable for use in industrial automation, office equipment, and various sensing applications. It operates within a temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD |
| Sensing Distance | 0.063"" (1.6mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 35µs, 35µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
