GP1S096HCZ0F
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More

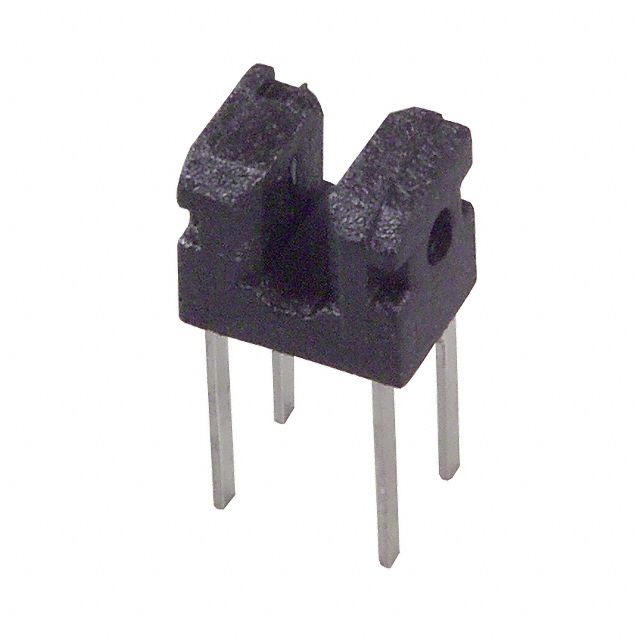

Sharp Microelectronics GP1S096HCZ0F is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting and offers a sensing distance of 1mm (0.039 inches). The maximum collector current (Ic) is 20 mA, with a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage is rated at 35 V. The sensor exhibits a response time of 50µs for both rise and fall times, supporting efficient signal processing. Its operating temperature range is from -25°C to 85°C. This component is commonly utilized in applications requiring precise object detection and presence sensing, such as industrial automation, office equipment, and consumer electronics. The GP1S096HCZ0F is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | PCB Mount |
| Sensing Distance | 0.039"" (1mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 50µs, 50µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
