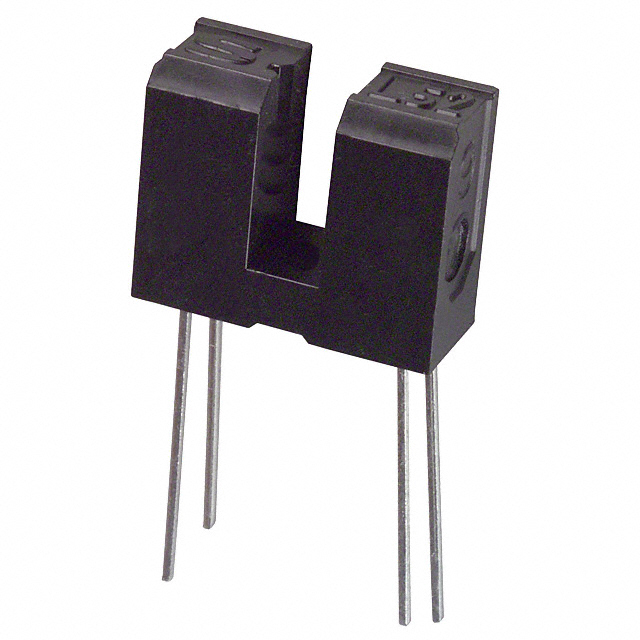

GP1L52V
SENSOR OPT SLOT DARL PCB MOUNTManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More
Sharp Microelectronics GP1L52V, an optical sensor with a photodarlington output configuration, is designed for through-beam sensing applications with a nominal sensing distance of 0.118 inches (3mm). This component features a PCB mount package and a through-hole mounting type. It supports a maximum collector current (Ic) of 40 mA and a maximum DC forward current (If) of 50 mA, with a collector-emitter breakdown voltage of 35 V. The response times are specified at 80µs and 70µs. This sensor is suitable for industrial automation, automotive systems, and office equipment. The product is supplied in bulk packaging and operates within an ambient temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.118"" (3mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Photodarlington |
| Response Time | 80µs, 70µs |
| Current - Collector (Ic) (Max) | 40 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
