PT550F
SENSOR PHOTO 800NM TOP TO206AAManufacturer: Sharp Microelectronics
Categories: Phototransistors
Quality Control: Learn More

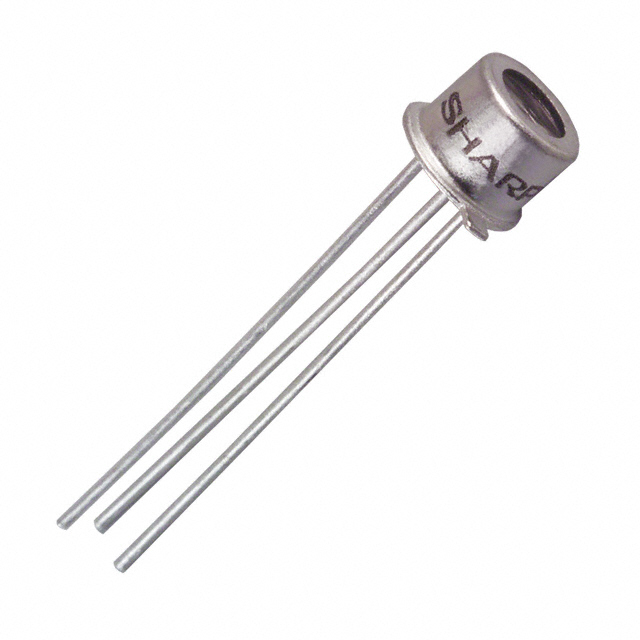

Sharp Microelectronics PT550F is a phototransistor designed for optical sensing applications. This component features a TO-206AA (TO-18-3 Metal Can) package with a top-view orientation, facilitating integration into various PCB layouts. It operates with a maximum collector current (Ic) of 100 mA and a low dark current (Id) of 1 µA, ensuring reliable performance. The phototransistor exhibits a breakdown voltage of 35 V and a maximum power dissipation of 150 mW. Its spectral sensitivity is optimized for 800nm wavelengths, making it suitable for applications in industrial automation, consumer electronics, and medical devices where accurate light detection is critical. The PT550F is supplied in tube packaging and supports through-hole mounting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Wavelength | 800nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 125°C |
| Viewing Angle | 100° |
| Current - Dark (Id) (Max) | 1 µA |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
Request a Quote
Clients Also Buy

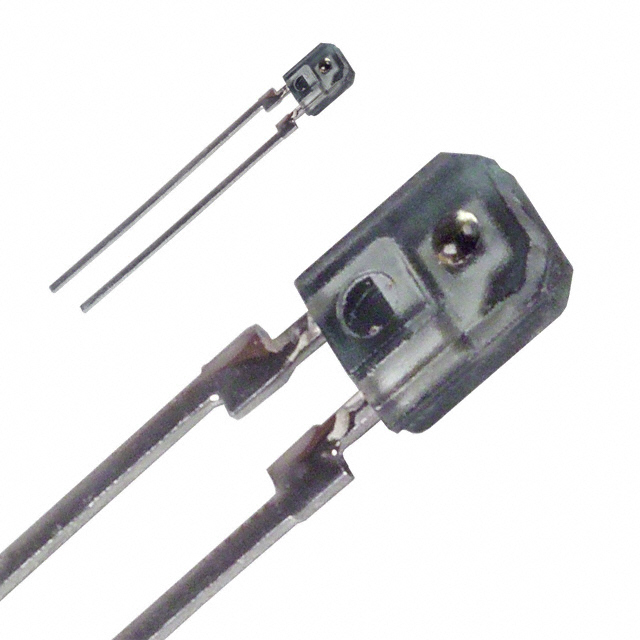

PT481E00000F
SENSOR PHOTO 800NM SIDE VIEW RAD

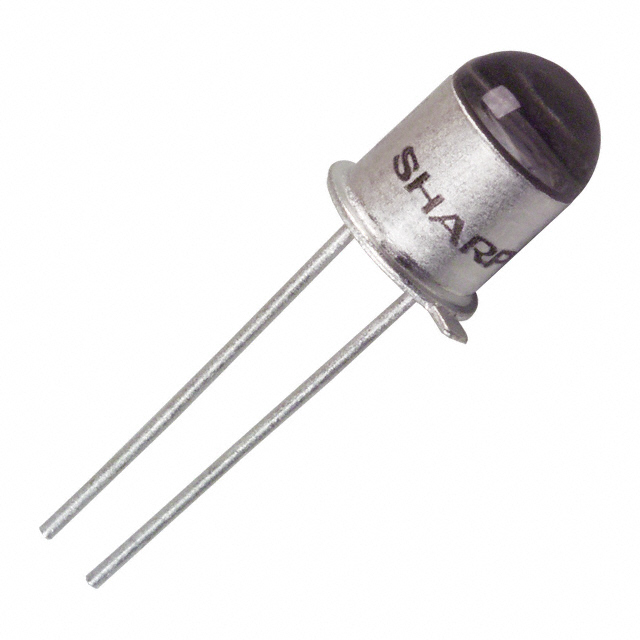

PT501
