PT4810F
SENSOR PHOTO 860NM SIDE VIEW RADManufacturer: Sharp Microelectronics
Categories: Phototransistors
Quality Control: Learn More

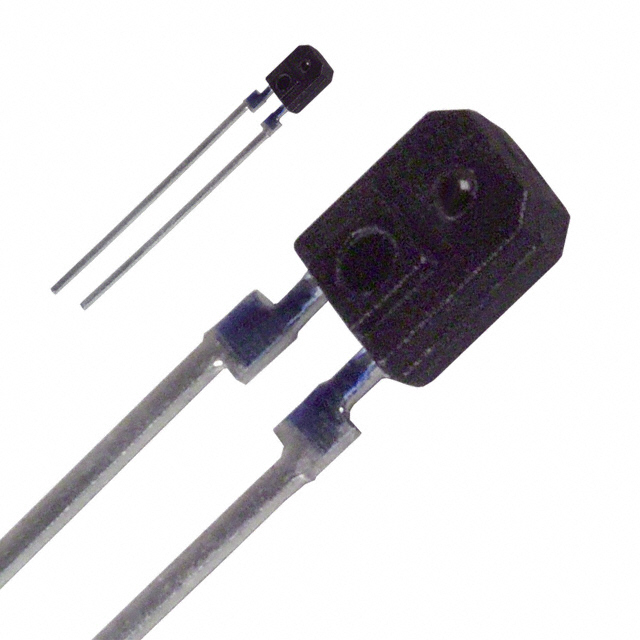

Sharp Microelectronics PT4810F phototransistor, a side-view radial component. This through-hole mount device features a maximum collector current (Ic) of 50 mA and a dark current (Id) of 1 µA. With a maximum collector emitter breakdown voltage of 35 V and a power dissipation of 75 mW, the PT4810F operates efficiently within a -25°C to 85°C temperature range. Its peak sensitivity is at 860nm, and it offers a viewing angle of 70°. Commonly utilized in optical sensing applications across various industries, including industrial automation and consumer electronics. Packaged in a tube for efficient handling.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Radial |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 70° |
| Current - Dark (Id) (Max) | 1 µA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 75 mW |
