PT4800FB
SENSOR PHOTO 860NM SIDE VIEW RADManufacturer: Sharp Microelectronics
Categories: Phototransistors
Quality Control: Learn More

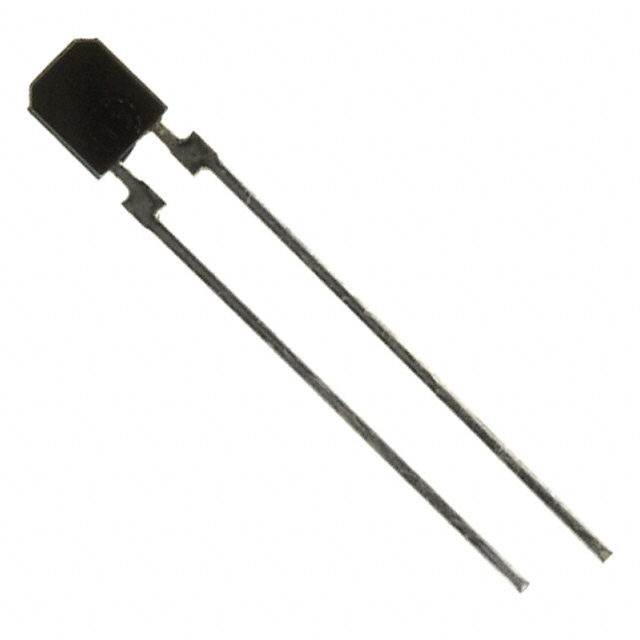

Sharp Microelectronics PT4800FB is an 860nm side-view phototransistor. This component features a radial package suitable for through-hole mounting. With a maximum collector current (Ic) of 20 mA and a maximum collector-emitter breakdown voltage of 35 V, it is designed for efficient light detection. The dark current (Id) is a maximum of 100 nA, and the device dissipates a maximum power of 75 mW. The viewing angle is 70°. This phototransistor is commonly utilized in industrial automation, consumer electronics, and medical equipment for its reliable optical sensing capabilities.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Radial |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | - |
| Viewing Angle | 70° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 75 mW |
