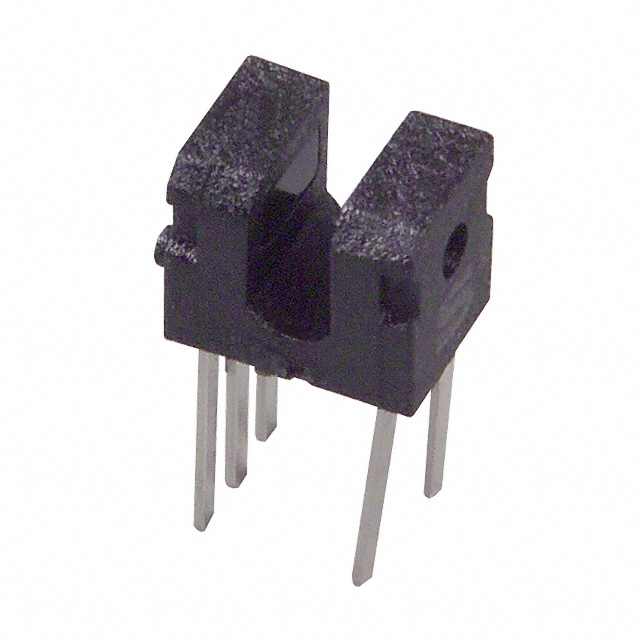

GP1A91LRJ00F
SENSOR OPTICAL 1.2MM PCB MOUNTManufacturer: Sharp Microelectronics
Categories: Photointerrupters - Slot Type - Logic Output
Quality Control: Learn More
Sharp Microelectronics OPIC™ GP1A91LRJ00F is a through-beam optical sensor for PCB mounting. This component features a 1.2mm sensing distance and an NPN open collector output configuration. With a supply voltage range of 1.4V to 7V and a low supply current of 700 µA, it offers efficient operation. The sensor's response times are rated at 600ns for turn-on and 200ns for turn-off. The GP1A91LRJ00F is commonly utilized in automation, industrial control, and consumer electronics applications requiring precise object detection or position sensing. It is supplied in bulk packaging.
Additional Information
Series: OPIC™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.047"" (1.2mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Output Configuration | NPN - Open Collector |
| Voltage - Supply | 1.4V ~ 7V |
| Response Time | 600ns, 200ns |
| Current - Supply | 700 µA |
