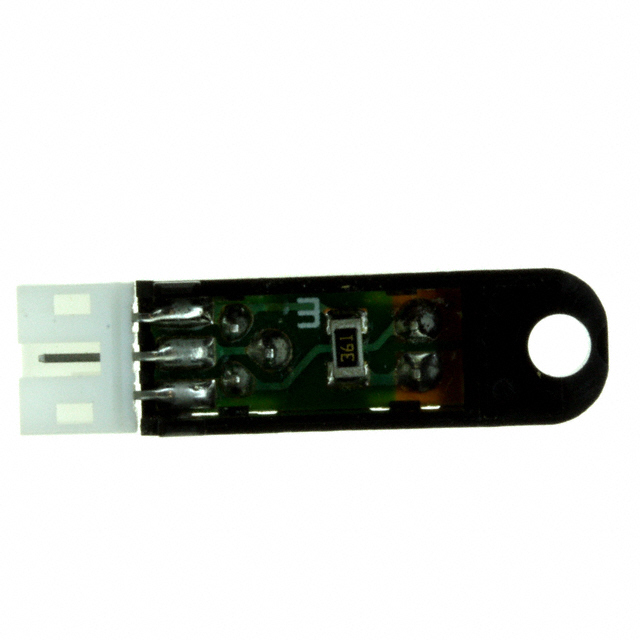

GP1A75E3J00F
SENSOR OPTICAL 5MM MODULE W/CONNManufacturer: Sharp Microelectronics
Categories: Photointerrupters - Slot Type - Logic Output
Quality Control: Learn More
Sharp Microelectronics OPIC™ GP1A75E3J00F is a through-beam optical sensor module with a 5mm sensing distance. This component features a logic output configuration with a pull-up resistor and buffer. It operates within a voltage supply range of 4.5V to 5.5V and draws a current supply of 20 mA. The module is designed for chassis mounting and includes a connector for integration. This photointerrupter is utilized in industrial automation, automotive systems, and consumer electronics for position sensing and object detection applications.
Additional Information
Series: OPIC™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Connector |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Output Configuration | Pull-Up Resistor, Buffer |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | - |
| Current - Supply | 20 mA |
Request a Quote
