GP1A50HR
SENSOR OPTICAL 3MM PCB MOUNTManufacturer: Sharp Microelectronics
Categories: Photointerrupters - Slot Type - Logic Output
Quality Control: Learn More

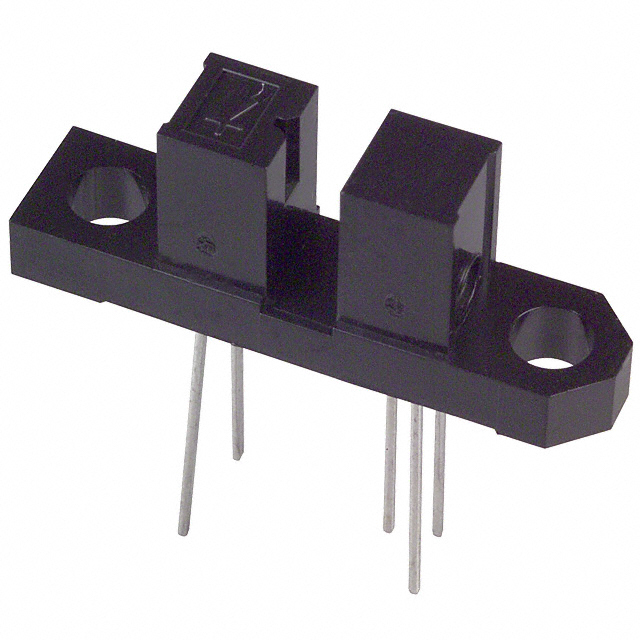

Sharp Microelectronics OPIC™ GP1A50HR is a through-beam optical sensor with a 3mm sensing distance, designed for PCB mounting. This component features a logic output with an internal pull-up resistor and buffer for simplified integration into digital systems. Operating from a 4.5V to 17V supply range, it draws a low 1.7mA quiescent current. The GP1A50HR offers rapid response times of 1µs (turn-on) and 0.05µs (turn-off), making it suitable for high-speed detection applications. Its through-hole mounting facilitates robust assembly. This sensor finds utility in industrial automation, consumer electronics, and office equipment where precise non-contact detection is required.
Additional Information
Series: OPIC™RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.118"" (3mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Pull-Up Resistor, Buffer |
| Voltage - Supply | 4.5V ~ 17V |
| Response Time | 1µs, 0.05µs |
| Current - Supply | 1.7 mA |
