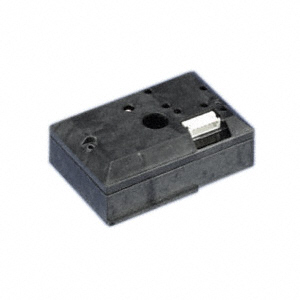

GP2Y1001AU
SENSOR AIR DUST QUALITYManufacturer: Sharp Microelectronics
Categories: Particle, Dust Sensors
Quality Control: Learn More
The Sharp Microelectronics GP2Y1001AU is an infrared (IR) dust sensor module designed for single pass-through air quality monitoring. This component operates within a voltage supply range of 10.2V to 13.8V, with a maximum forward current (If) of 20 mA. Featuring a sensitivity of 1.2V/(0.1mg/m3), it provides a reliable output for detecting particulate matter. The module is designed for chassis mounting and operates across a temperature range of -10°C to 65°C. This device is commonly utilized in air purifiers, HVAC systems, and industrial environmental monitoring applications. The GP2Y1001AU is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module, Single Pass Through |
| Output Type | - |
| Sensitivity | 1.2V/(0.1mg/m3) |
| Mounting Type | Chassis Mount |
| Type | Infrared (IR) |
| Operating Temperature | -10°C ~ 65°C |
| Voltage - Supply | 10.2V ~ 13.8V |
| Current - DC Forward (If) (Max) | 20 mA |
Request a Quote
Clients Also Buy

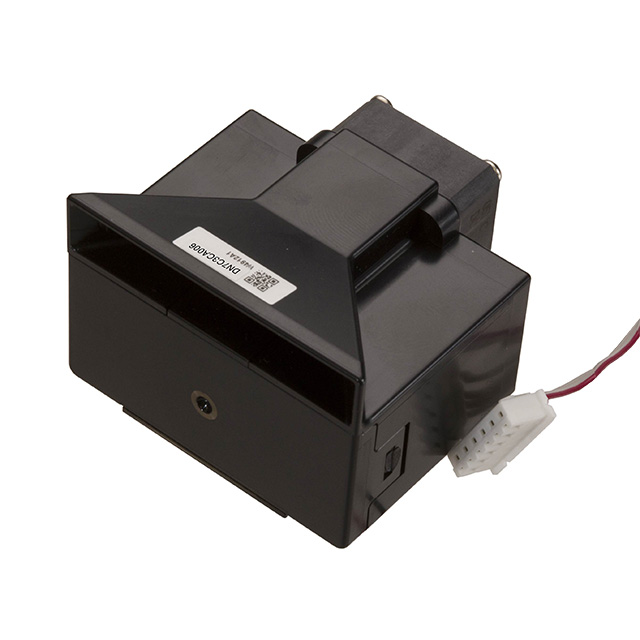

DN7C3CA006
