LH7A404N0E000B0A
IC MCU 32BIT ROMLESS 324CABGAManufacturer: Sharp Microelectronics
Categories: Microcontrollers
Quality Control: Learn More
Sharp Microelectronics LH7A404N0E000B0A is a 32-bit ARM9® BlueStreak ; LH7A series microcontroller. This ROMless device operates at 200MHz and features a 32-bit single-core architecture. Connectivity options include Audio Codec, EBI/EMI, IrDA, Memory Card, SmartCard, SSP, UART/USART, and USB. The component includes AC'97, DMA, LCD, POR, PWM, and WDT peripherals, along with 9x10b Analog-to-Digital converters. It offers 80K x 8 of RAM and 64 I/O lines. The operating voltage range is 1.71V to 3.6V with an operating temperature of -40°C to 85°C. Mounting is surface mount, with the package/case being 324-LFBGA. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: BlueStreak ; LH7ARoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 324-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | - |
| RAM Size | 80K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ARM9® |
| Data Converters | A/D 9x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | Audio Codec, EBI/EMI, IrDA, Memory Card, SmartCard, SSP, UART/USART, USB |
| Peripherals | AC'97, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 64 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

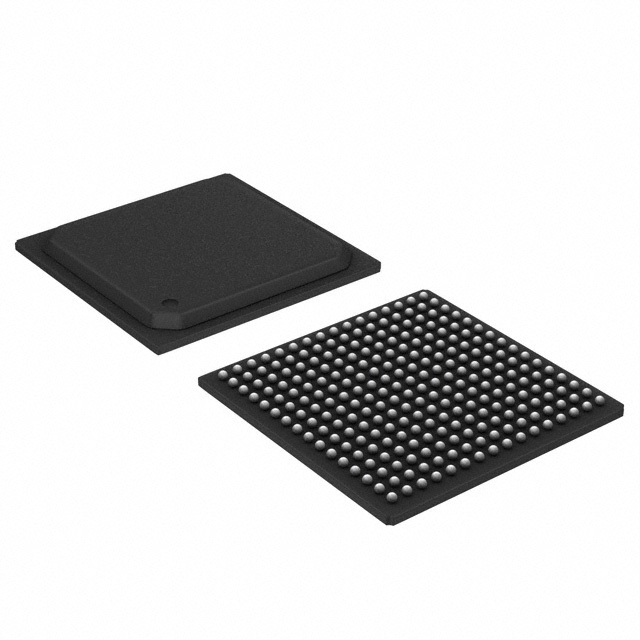

LH7A400N0G000B5
LH7A400 - 32-BIT SYSTEM-ON-CHIP

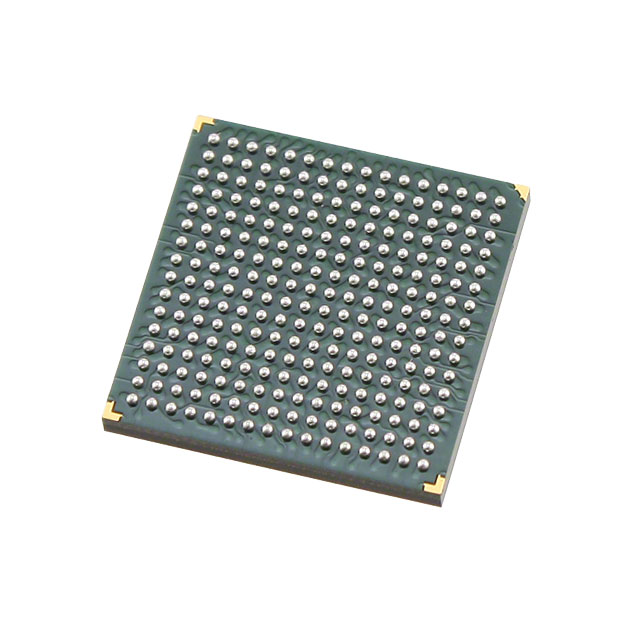

LH7A400N0E000B3A
