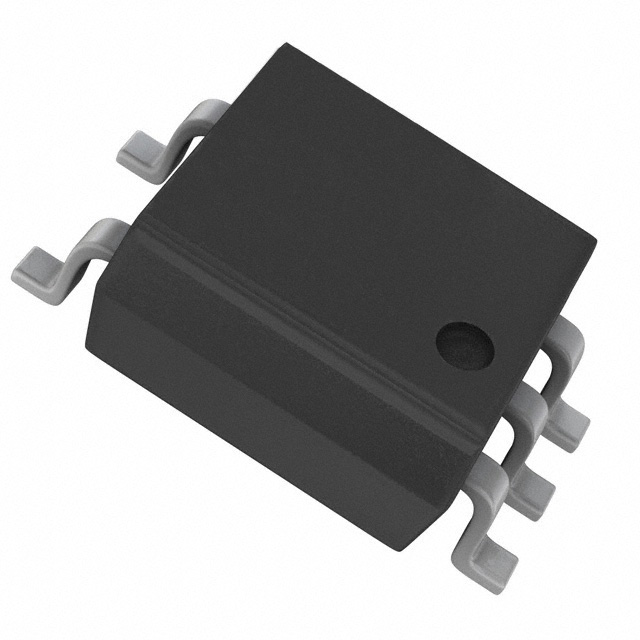

PC456L0NIP0F
OPTOISO 3.75KV OPEN COLL 5MFPManufacturer: Sharp Microelectronics
Categories: Logic Output Optoisolators
Quality Control: Learn More
Logic Output Optoisolator 2Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 5-MFP
Additional Information
Series: OPIC™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 5 Leads |
| Output Type | Open Collector |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 35V |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Data Rate | 2Mbps |
| Input Type | DC |
| Voltage - Isolation | 3750Vrms |
| Current - DC Forward (If) (Max) | 25mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 5-MFP |
| Rise / Fall Time (Typ) | - |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 550ns, 400ns |
| Number of Channels | 1 |
| Current - Output / Channel | 15 mA |
