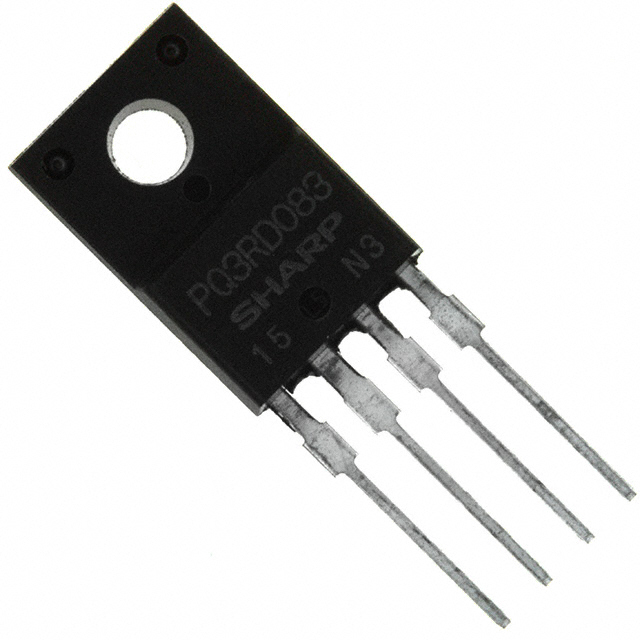

PQ3RD083
IC REG LINEAR 3.3V 800MA TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ3RD083 is a positive fixed output linear voltage regulator IC. This component delivers a stable 3.3V with an output current capability of 800mA. Featuring an enable pin for enhanced control, the PQ3RD083 offers protection against over current and over temperature conditions. Its low quiescent current of 10mA and a dropout voltage of 0.5V at 500mA contribute to efficient power management. With a maximum input voltage of 20V and a PSRR of 55dB at 120Hz, it is suitable for applications requiring reliable voltage regulation. The PQ3RD083 is packaged in a TO-220-4 through-hole mount configuration, commonly utilized in industrial and automotive sectors. This device is supplied in a tube.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 800mA |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
