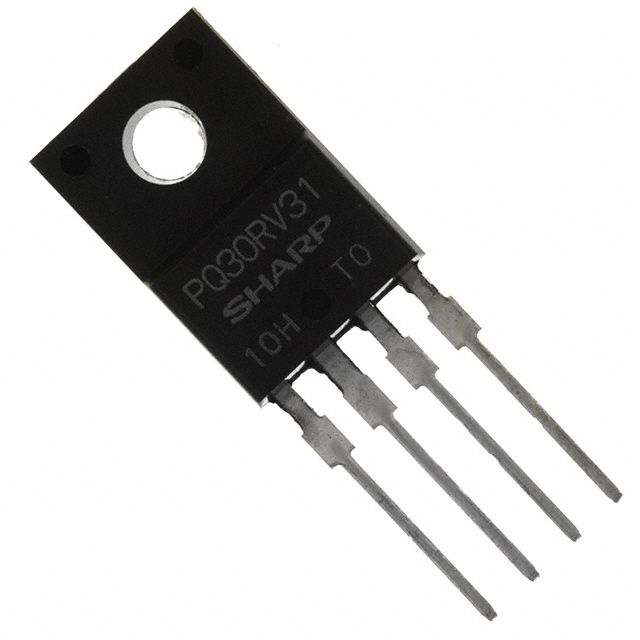

PQ30RV31J00H
IC REG LINEAR POS ADJ 3A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ30RV31J00H is a positive adjustable linear voltage regulator designed to deliver a stable output current of up to 3A. This component features an adjustable output voltage ranging from 1.5V to 30V, with a maximum input voltage of 35V. The voltage dropout is rated at 1V at 3A, and it offers a typical quiescent current of 7mA. Enhanced protection mechanisms include overcurrent and overtemperature shutdown. The device boasts a Power Supply Rejection Ratio (PSRR) of 70dB at 120Hz, crucial for minimizing noise in sensitive applications. Supplied in a TO-220-4 package for through-hole mounting, this regulator is suitable for demanding power supply designs across various industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 1V @ 3A |
| Protection Features | Over Current, Over Temperature |
