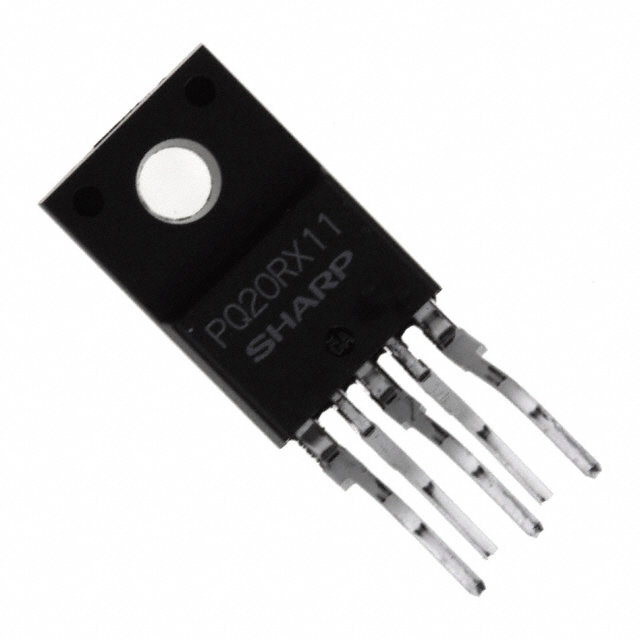

PQ20RX11J00H
IC REG LINEAR POS ADJ 1A TO220-5Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ20RX11J00H is an adjustable positive linear voltage regulator designed for demanding applications. This component offers a stable output voltage with a maximum current capability of 1A. Key features include an enable control pin for power management, over-current, and over-temperature protection for robust operation. The device exhibits a typical quiescent current of 8 mA and a typical dropout voltage of 0.5V at 500mA, facilitating efficient power conversion. With a maximum input voltage of 24V and an adjustable output range from 3V to 20V, the PQ20RX11J00H provides design flexibility. Its Power Supply Rejection Ratio (PSRR) of 45dB at 120Hz ensures effective filtering of input voltage noise. The TO-220-5 package with formed leads is suitable for through-hole mounting. This versatile regulator finds application in industrial and consumer electronics power supply systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 24V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 45dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
