PQ20RX05

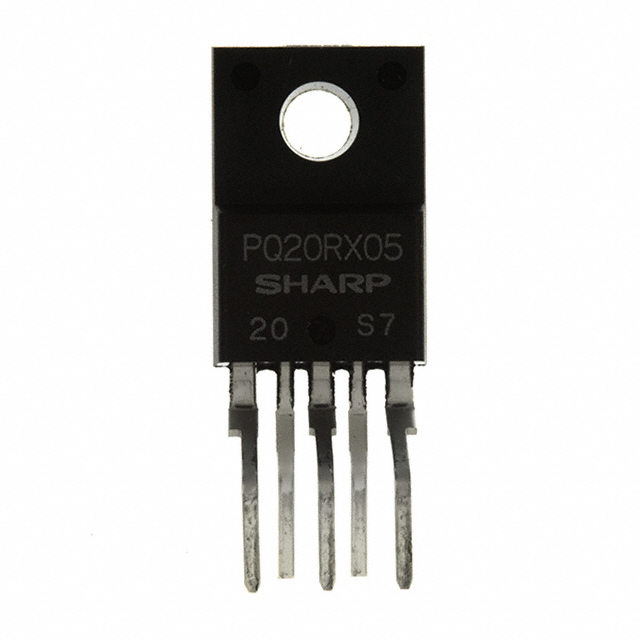

IC REG LIN POS ADJ 500MA TO220-5Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ20RX05 is a positive adjustable linear voltage regulator designed for applications requiring stable power delivery. This component offers a maximum output current of 500mA and an adjustable output voltage range from 3V to 20V. With a maximum input voltage of 24V, it accommodates a variety of power sources. The PQ20RX05 features a low dropout voltage of 0.5V at 300mA, ensuring efficient operation. Protection mechanisms including over-current and over-temperature shutdown are integrated for device longevity. The device also includes an enable pin for output control and exhibits a Power Supply Rejection Ratio (PSRR) of 45dB at 120Hz. Packaged in a TO-220-5 format, suitable for through-hole mounting, this regulator finds utility in industrial and consumer electronics. The quiescent current is 8mA, and it operates within a temperature range of -20°C to 80°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 24V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 45dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Protection Features | Over Current, Over Temperature |
