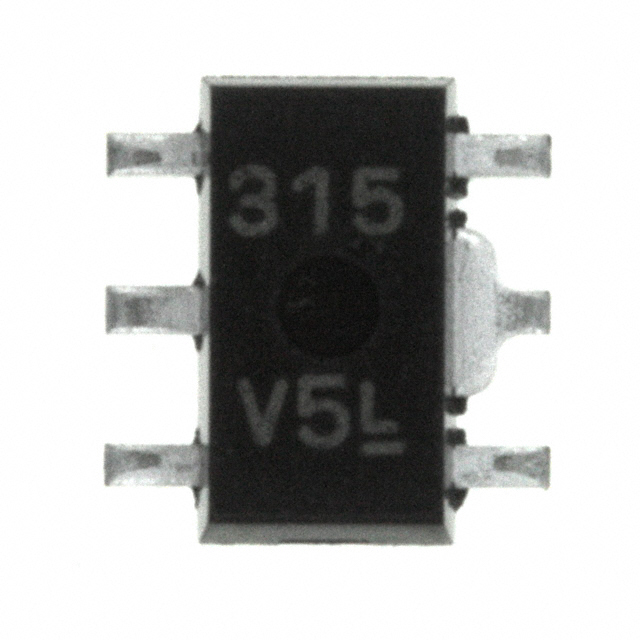

PQ1N333MCSPQ
IC REG LINEAR 3.3V 350MA SOT89Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ1N333MCSPQ is a positive fixed output linear voltage regulator. This component offers a stable 3.3V output with a maximum output current of 350mA. Designed for surface mounting, it is supplied in a SOT-89 (TO-243AA) package on tape and reel. Key features include over-current and over-temperature protection, along with a reset control function. The typical quiescent current is 2mA, and the dropout voltage is 0.7V at 350mA. With a maximum input voltage of 9V and a Power Supply Rejection Ratio (PSRR) of 55dB at 400Hz, this regulator is suitable for applications in consumer electronics and industrial control systems. It operates within a temperature range of -30°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 350mA |
| Operating Temperature | -30°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 9V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Reset |
| PSRR | 55dB (400Hz) |
| Voltage Dropout (Max) | 0.7V @ 350mA |
| Protection Features | Over Current, Over Temperature |
