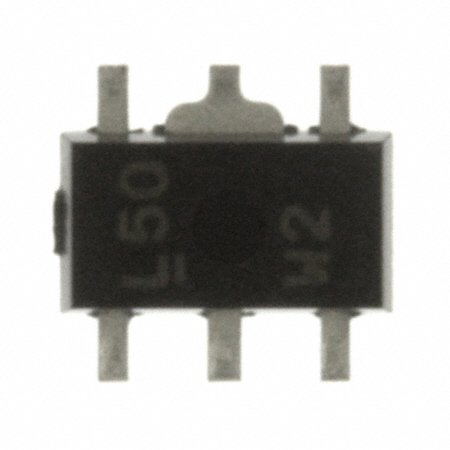

PQ1L503M2SPQ
IC REG LINEAR 5V 300MA SOT89Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1L503M2SPQ is a positive fixed output linear voltage regulator IC designed for applications requiring stable power delivery. This component offers a fixed output voltage of 5V with a maximum output current of 300mA. The device features an enable pin for power management and includes overcurrent and overtemperature protection for enhanced reliability. With a low quiescent current of 500 µA and a dropout voltage of 0.7V at 300mA, it is suitable for power-sensitive designs. The PQ1L503M2SPQ is packaged in a SOT-89 surface mount case and operates within a temperature range of -30°C to 80°C. It finds application in various industrial and consumer electronics, including portable devices, battery-powered equipment, and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-89-5/6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -30°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 500 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.7V @ 300mA |
| Protection Features | Over Current, Over Temperature |
