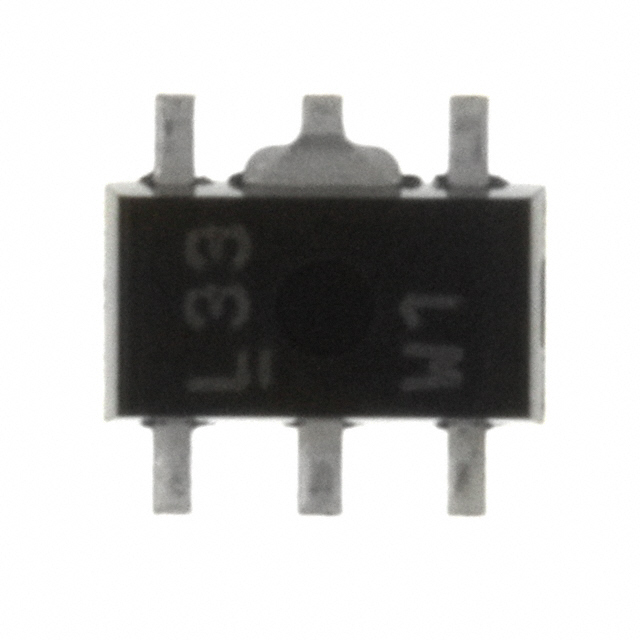

PQ1L333M2SPQ
IC REG LINEAR 3.3V 300MA SOT89Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1L333M2SPQ is a positive fixed output linear voltage regulator IC. This component provides a stable 3.3V output with a maximum output current of 300mA. It features an enable control pin for power management. The device offers over current and over temperature protection, enhancing system reliability. With a quiescent current of 500 µA and a dropout voltage of 0.7V at 300mA, the PQ1L333M2SPQ is suitable for applications demanding efficiency and robust performance. Its SOT-89-5/6 package facilitates surface mounting. This regulator is commonly utilized in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-89-5/6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -30°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 500 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.7V @ 300mA |
| Protection Features | Over Current, Over Temperature |
