PQ15RW21J00H
IC REG LINEAR POS ADJ 2A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

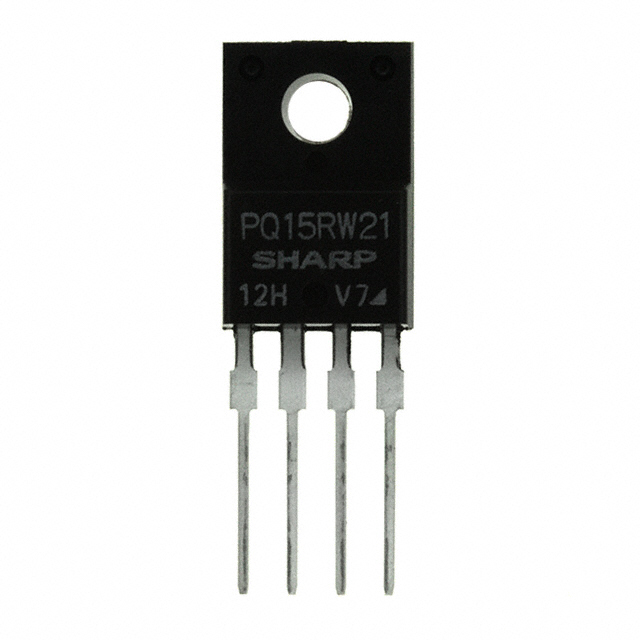

The Sharp Microelectronics PQ15RW21J00H is a positive adjustable linear voltage regulator with a maximum output current of 2A. This TO-220-4 packaged component offers an output voltage range from 3V to 15V, with a maximum input voltage of 20V. Featuring a low dropout voltage of 0.5V at 2A, it also includes over-current and over-temperature protection. The quiescent current (Iq) is 8 mA, and the device exhibits a Power Supply Rejection Ratio (PSRR) of 55dB at 120Hz. This component is suitable for applications in power supplies, industrial control systems, and consumer electronics. It is supplied in a tube for through-hole mounting.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 2A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 2A |
| Protection Features | Over Current, Over Temperature |
