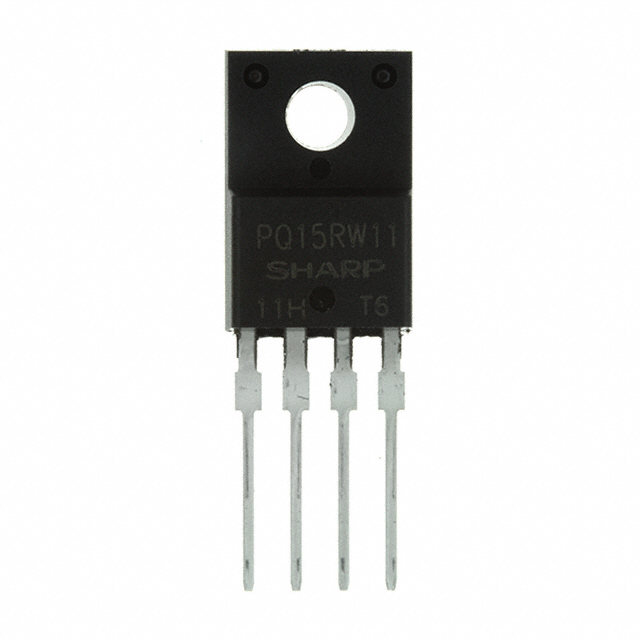

PQ15RW11J00H
IC REG LINEAR POS ADJ 1A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ15RW11J00H is a positive adjustable linear voltage regulator with a 1A output capability. This component is housed in a TO-220-4 package, suitable for through-hole mounting. It features over-current and over-temperature protection for enhanced reliability. The input voltage range extends up to 20V, with an adjustable output voltage that can be set between 3V and a maximum of 15V. The quiescent current is rated at 8mA, and the voltage dropout is a maximum of 0.5A at 500mA output. With a Power Supply Rejection Ratio (PSRR) of 55dB at 120Hz, this regulator is well-suited for applications in industrial automation, consumer electronics, and telecommunications equipment where stable power delivery is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.5A @ 500mA |
| Protection Features | Over Current, Over Temperature |
