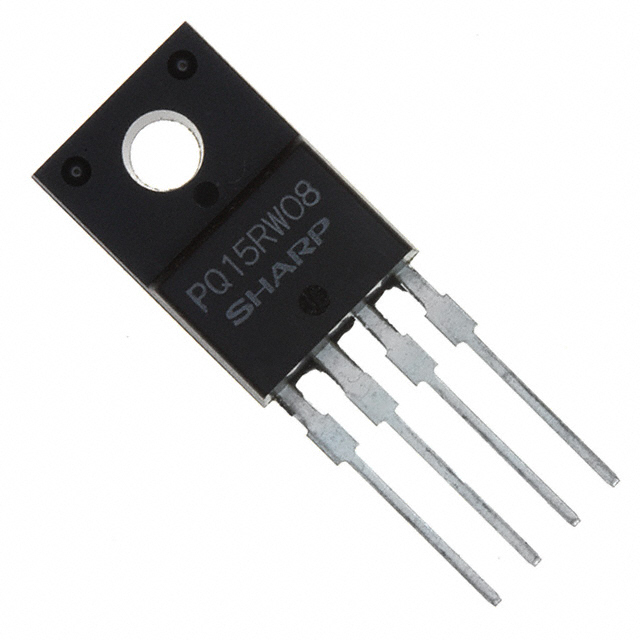

PQ15RW08
IC REG LIN POS ADJ 800MA TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ15RW08 is an adjustable positive linear voltage regulator with an 800mA output current capability. This component features over-current and over-temperature protection, along with a quiescent current of 8mA. The PQ15RW08 offers a wide input voltage range up to 20V and an adjustable output voltage from 3V to a maximum of 15V. Its Power Supply Rejection Ratio (PSRR) is specified at 55dB at 120Hz. The device is housed in a TO-220-4 package, suitable for through-hole mounting. Typical applications include industrial power supplies, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 800mA |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.5A @ 500mA |
| Protection Features | Over Current, Over Temperature |
