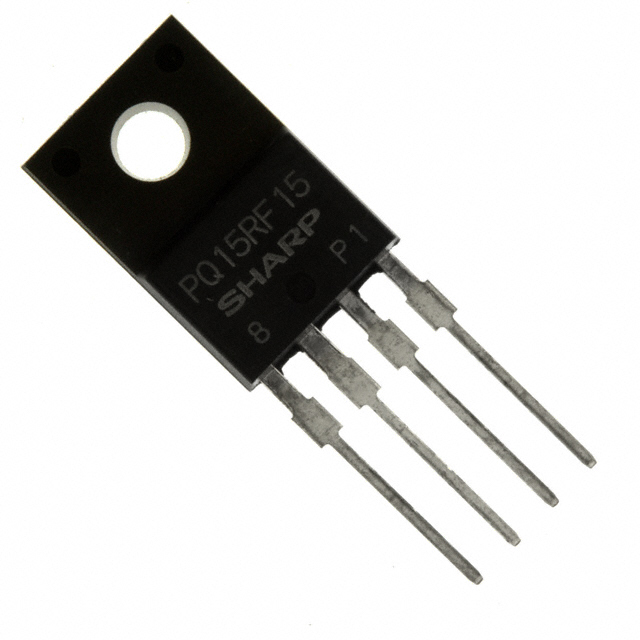

PQ15RF15
IC REG LINEAR 15.7V 1A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ15RF15 is a positive fixed output linear voltage regulator IC. This component delivers a stable 15.7V output with a maximum current capability of 1A. Designed for through-hole mounting in a TO-220-4 package, it features over-current and over-temperature protection for robust operation. The quiescent current is a mere 20 µA, making it suitable for power-sensitive applications. It supports an input voltage range up to 35V and exhibits a typical Power Supply Rejection Ratio (PSRR) of 65dB at 120Hz. Control is managed via an enable pin. The PQ15RF15 is utilized in various industrial and consumer electronics sectors requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 20 µA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 15.7V |
| Control Features | Enable |
| PSRR | 65dB (120Hz) |
| Voltage Dropout (Max) | 0.5A @ 500mA |
| Protection Features | Over Current, Over Temperature |
