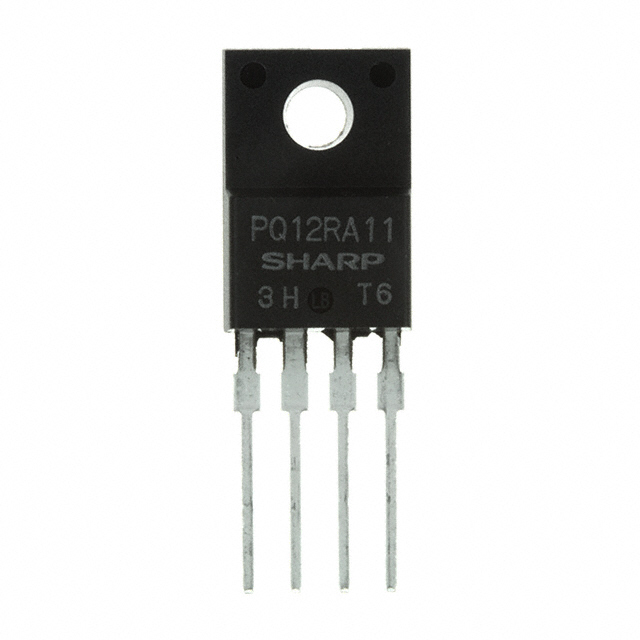

PQ12RA11J00H
IC REG LINEAR 12V 1A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ12RA11J00H is a positive fixed output linear voltage regulator IC. This component provides a stable 12V output at a maximum current of 1A, suitable for applications demanding reliable power delivery. Featuring over-current and over-temperature protection, it enhances system robustness. The device operates with a quiescent current of 8 mA and accepts an input voltage up to 35V. Its through-hole mounting type and TO-220-4 package make it adaptable for various PCB designs. The PQ12RA11J00H is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment where consistent voltage regulation is critical. It offers a Power Supply Rejection Ratio (PSRR) of 55dB at 120Hz.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
