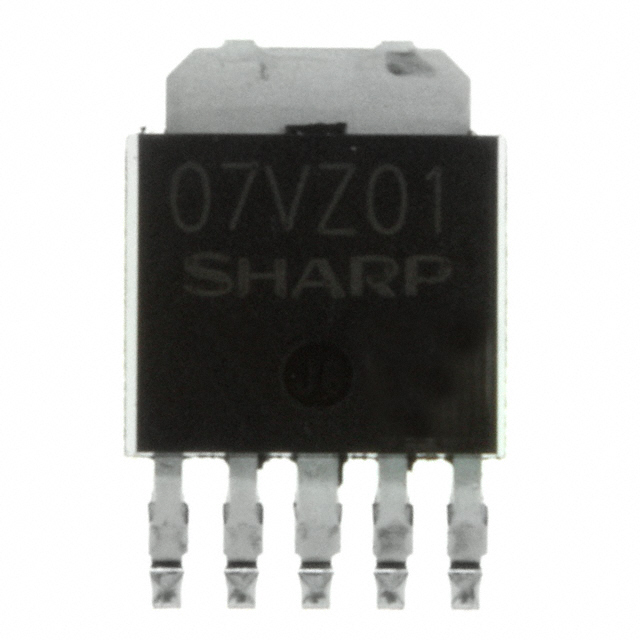

PQ07VZ012ZPH
IC REG LINEAR POS ADJ 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ07VZ012ZPH is a positive adjustable linear voltage regulator IC. This component delivers a 1A output current and features an adjustable output voltage ranging from 1.5V to 7V, with a maximum input voltage of 10V. Designed with a low dropout voltage of 0.5V at 500mA, it offers efficient regulation. The regulator includes overcurrent and overtemperature protection for enhanced reliability. Its quiescent current is 7mA, and it boasts a Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz. The PQ07VZ012ZPH is housed in a SC-63 (TO-252-6, DPAK) surface-mount package and is supplied on tape and reel. This device finds application in power management systems across various industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
