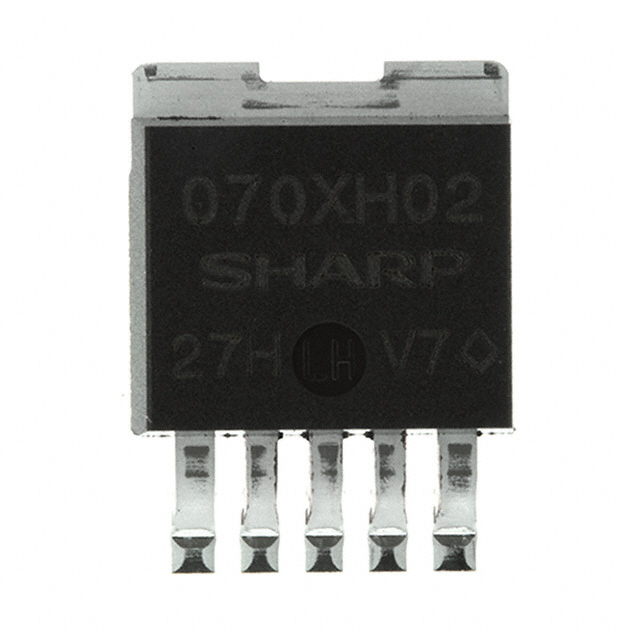

PQ070XH02ZPH
IC REG LINEAR POS ADJ 2A TO263Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ070XH02ZPH is a positive adjustable linear voltage regulator with an output current capability of 2A. This TO-263-6, D2PAK (5 Leads + Tab) packaged device features an adjustable output voltage range from 1.5V to 7V, with a maximum input voltage of 10V. The regulator offers a low dropout voltage of 0.5V at its maximum output current of 2A. Protection features include over-current and over-temperature shutdown. The PQ070XH02ZPH is suitable for surface mount applications and operates across a temperature range of -40°C to 85°C. It is commonly utilized in industrial, consumer electronics, and power supply applications. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 |
| Voltage - Output (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 2A |
| Protection Features | Over Current, Over Temperature |
