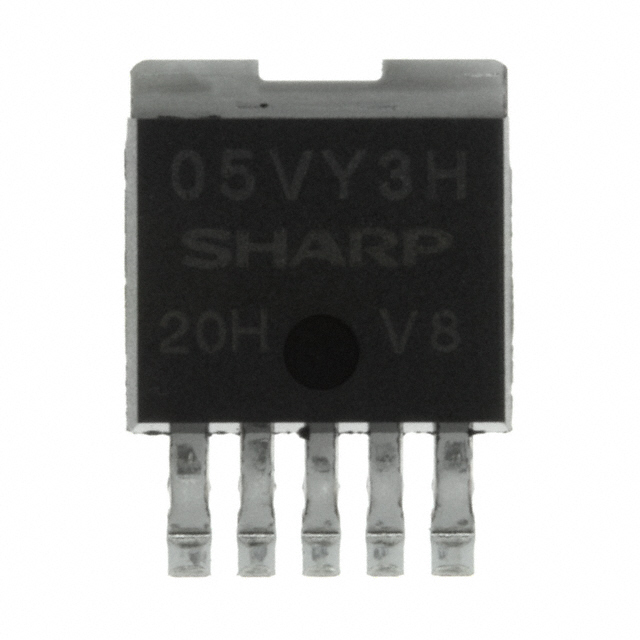

PQ05VY3H3ZPH
IC REG LINEAR POS ADJ 3.5A TO263Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ05VY3H3ZPH is a positive adjustable linear voltage regulator IC designed for surface mount applications within a TO-263-6, D2PAK package. This component provides a stable output voltage with a maximum current capability of 3.5A and an input voltage range up to 7V, with an adjustable output from 1.5V to 5V. The PQ05VY3H3ZPH features an enable control input and offers robust protection against overcurrent and overtemperature conditions. Its quiescent current is 10mA, and it exhibits a typical dropout voltage of 0.5V at its maximum output current. With a power supply rejection ratio (PSRR) of 70dB at 120Hz, this regulator is suitable for applications in industrial control systems and power supply units requiring efficient voltage regulation. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3.5A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 3.5A |
| Protection Features | Over Current, Over Temperature |
