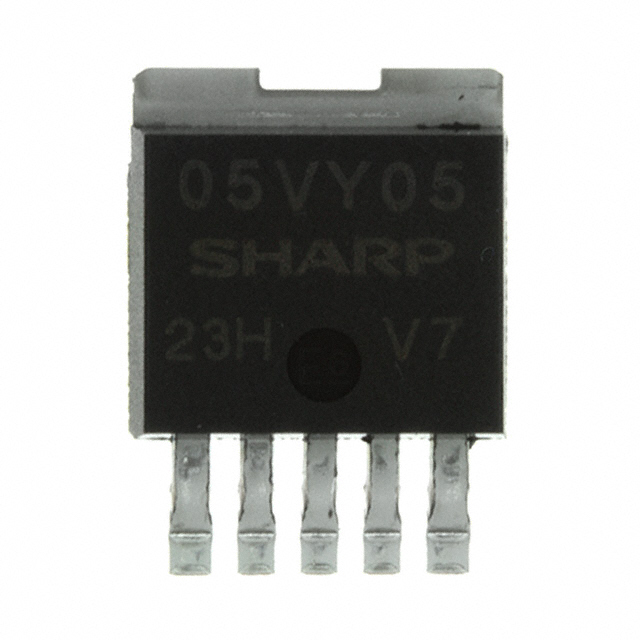

PQ05VY053ZPH
IC REG LINEAR POS ADJ 5A TO263Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ05VY053ZPH is a positive adjustable linear voltage regulator IC. This component delivers a robust 5A output current with a low dropout voltage of 0.5V at 5A, ensuring efficient power regulation. It features an adjustable output voltage ranging from 1.5V to a maximum of 5V, with a maximum input voltage capability of 7V. The device includes essential protection features such as over-current and over-temperature shutdown. With an enable control for power management and a quiescent current of 10mA, this regulator is well-suited for applications in industrial automation, telecommunications infrastructure, and automotive electronics. The PQ05VY053ZPH is supplied in a TO-263-6, D2PAK surface mount package, presented on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 5A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 5A |
| Protection Features | Over Current, Over Temperature |
