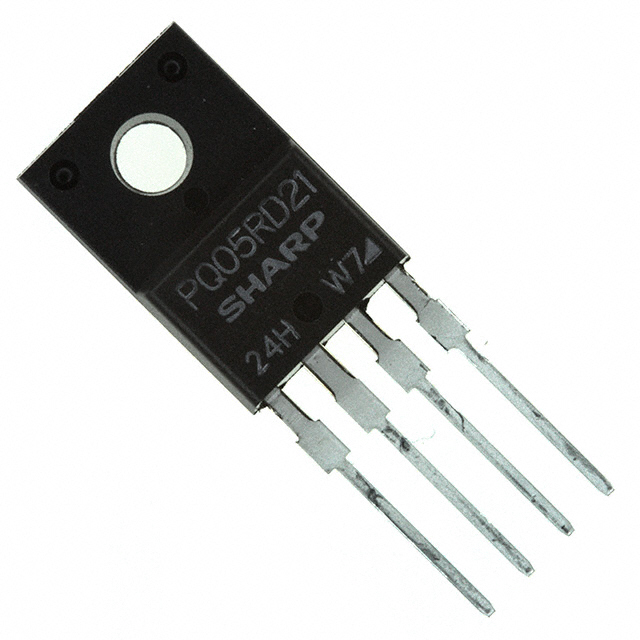

PQ05RD21J00H
IC REG LINEAR 5V 2A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ05RD21J00H is a positive fixed output linear voltage regulator IC. This device provides a stable 5V output with a maximum output current of 2A. Designed for through-hole mounting in a TO-220-4 package, it features an enable pin for control and offers protection against over-current and over-temperature conditions. The PQ05RD21J00H boasts a typical quiescent current of 10 mA and a power supply rejection ratio (PSRR) of 55dB at 120Hz. It operates within a temperature range of -20°C to 80°C and has a maximum input voltage of 20V. The voltage dropout at 2A is a maximum of 0.5V. This component is suitable for applications in industrial automation and telecommunications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 2A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 2A |
| Protection Features | Over Current, Over Temperature |
