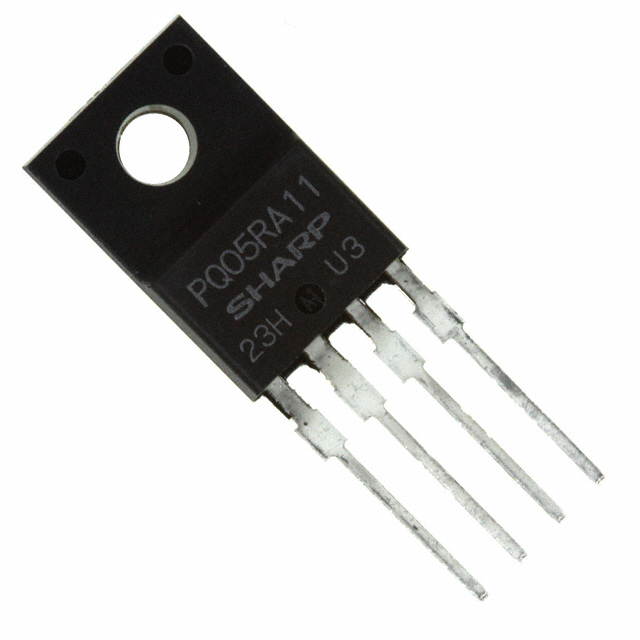

PQ05RA11J00H
IC REG LINEAR 5V 1A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ05RA11J00H is a positive fixed output linear voltage regulator. This TO-220-4 packaged device provides a stable 5V output with a maximum current capability of 1A. Key features include over-current and over-temperature protection, alongside an enable pin for enhanced control. The regulator exhibits a quiescent current of 8mA and a typical PSRR of 55dB at 120Hz, suitable for applications requiring efficient power management. With an input voltage tolerance up to 35V, it is designed for use in industrial automation, consumer electronics, and telecommunications equipment. The through-hole mounting type and TO-220-4 package facilitate integration into various circuit designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
