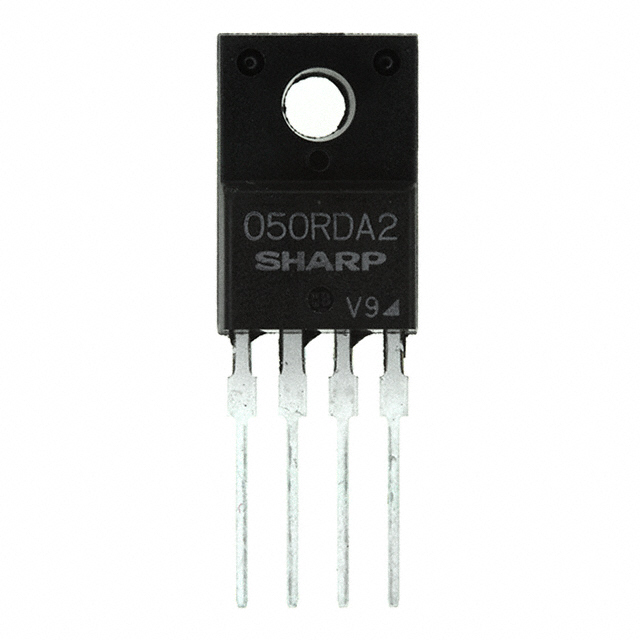

PQ050RDA2SZH
IC REG LINEAR 5V 2A TO220-4Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ050RDA2SZH is a positive fixed output linear voltage regulator with a 5V output and a maximum output current of 2A. This TO-220-4 packaged device features an enable control pin and includes overcurrent and overtemperature protection. With a typical quiescent current of 8mA, it offers a PSRR of 60dB at 120Hz. The input voltage range extends up to 20V, with a dropout voltage not exceeding 1V at 2A. Designed for through-hole mounting, the PQ050RDA2SZH operates within an ambient temperature range of -40°C to 85°C. This component finds application in industrial automation, power supplies, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 1V @ 2A |
| Protection Features | Over Current, Over Temperature |
