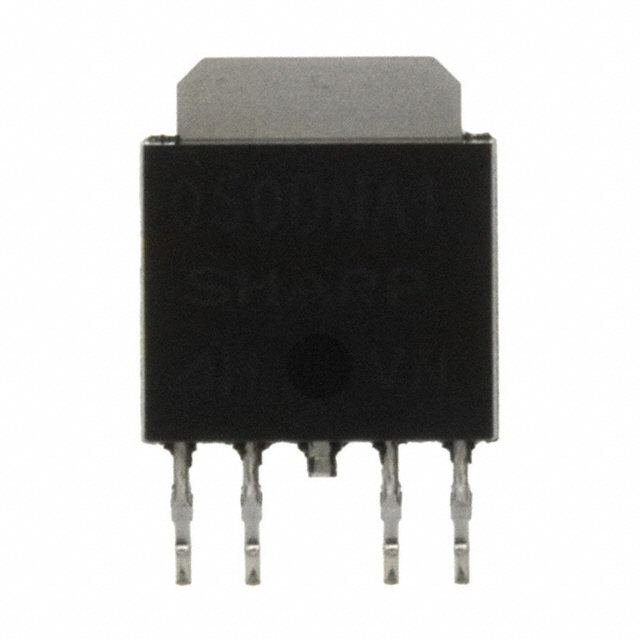

PQ050DNA1ZPH
IC REG LINEAR 5V 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ050DNA1ZPH is a positive, fixed output linear voltage regulator IC. This component offers a 5V output with a maximum current capability of 1A. Designed for surface mount applications, it is supplied in a SC-63 package (TO-252-5, DPAK). Key features include an enable control pin, over-current and over-temperature protection, and a quiescent current of 8 mA. The device exhibits a typical dropout voltage of 0.5V at 500mA and a Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz. It operates within a temperature range of -40°C to 85°C and accepts an input voltage up to 24V. This regulator is commonly utilized in industrial automation, power management systems, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 24V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
