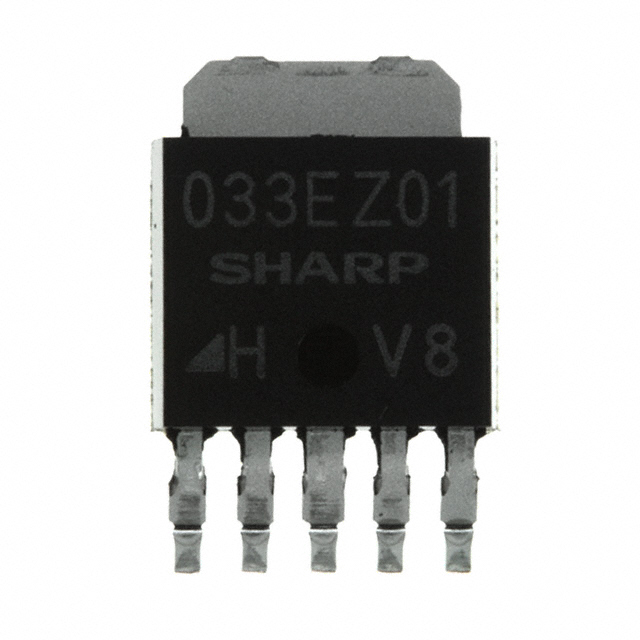

PQ033EZ01ZPH
IC REG LINEAR 3.3V 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ033EZ01ZPH is a positive fixed linear voltage regulator IC. This device delivers a stable 3.3V output with a maximum current capability of 1A. Designed for surface mount applications, it features an SC-63 package (TO-252-6, DPAK) and operates across a temperature range of -40°C to 85°C. Key control features include an Enable pin, and protection mechanisms such as over current and over temperature shutdown are integrated. The PQ033EZ01ZPH exhibits a Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz and a typical quiescent current of 2mA. The input voltage range extends up to 10V, with a dropout voltage of 0.5V at 500mA. This component is commonly employed in industrial control, consumer electronics, and telecommunications equipment. Available on Tape & Reel (TR).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
