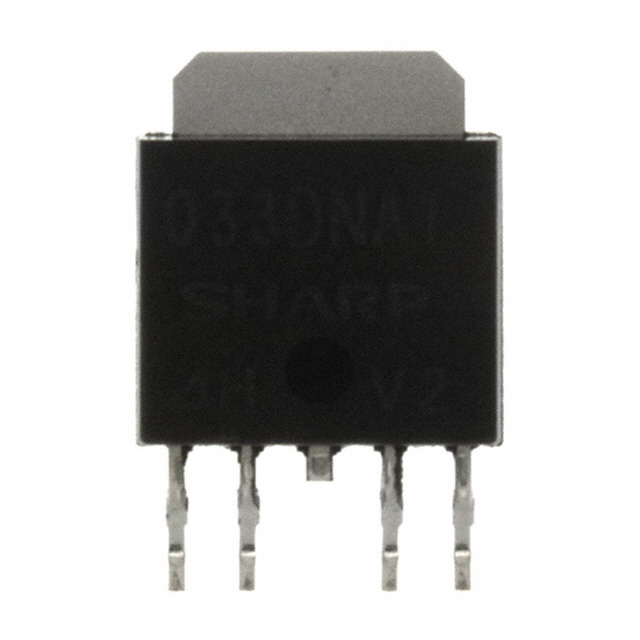

PQ033DNA1ZPH
IC REG LINEAR 3.3V 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ033DNA1ZPH is a positive fixed output linear voltage regulator with a 3.3V output and a maximum output current of 1A. This component features an Enable control input and offers overcurrent and over-temperature protection. The typical quiescent current is 8mA. It operates from an input voltage range up to 24V, with a dropout voltage of 0.5V at 500mA output current. The PQ033DNA1ZPH is supplied in an SC-63 package (TO-252-5, DPAK) suitable for surface mounting. Its performance characteristics, including a Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz, make it suitable for applications in industrial automation, telecommunications, and consumer electronics. The device operates within a temperature range of -40°C to 85°C and is provided on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 24V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
