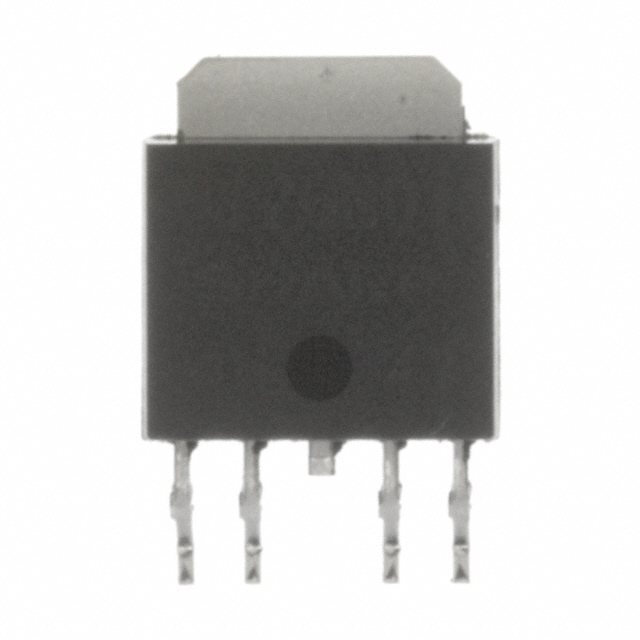

PQ012GN01ZPH
IC REG LINEAR 1.2V 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ012GN01ZPH is a positive fixed output linear voltage regulator. This component delivers 1A of output current with a fixed output voltage of 1.2V. Designed for surface mount applications, it utilizes the SC-63 (TO-252-5, DPAK) package. Key protection features include over-current and over-temperature shutdown. The device offers a typical Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz, with a PSRR of 53dB at higher frequencies, facilitating stable operation in noisy environments. The input voltage range is specified up to 5.5V. This regulator is suitable for applications in consumer electronics, industrial control systems, and telecommunications infrastructure. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | - |
| PSRR | 60dB ~ 53dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
