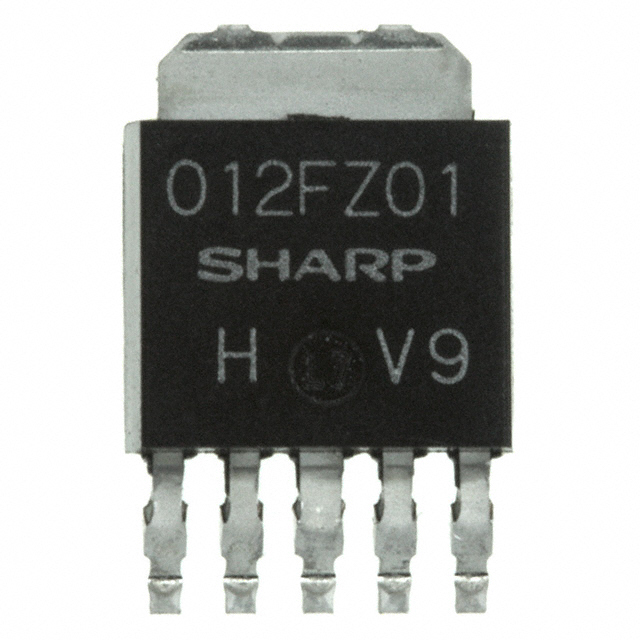

PQ012FZ01ZZH
IC REG LINEAR 1.2V 1A SC63Manufacturer: Sharp Microelectronics
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Sharp Microelectronics PQ012FZ01ZZH is a positive fixed output linear voltage regulator with a 1.2V output and a maximum output current of 1A. This component is housed in an SC-63 (TO-252-6, DPAK) surface-mount package. Key features include an enable pin for control and robust protection circuitry against over-current and over-temperature conditions. The device offers a Power Supply Rejection Ratio (PSRR) of 60dB at 120Hz, making it suitable for applications requiring clean power delivery. Its input voltage range extends up to 3.7V. The PQ012FZ01ZZH is commonly employed in power management for consumer electronics, industrial control systems, and automotive applications. It operates within an ambient temperature range of 0°C to 125°C and is supplied in tubes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 3.7V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-63 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
