GM5WA06250A
LED RGB CLEAR CHIP SMDManufacturer: Sharp Microelectronics
Categories: LED Indication - Discrete
Quality Control: Learn More

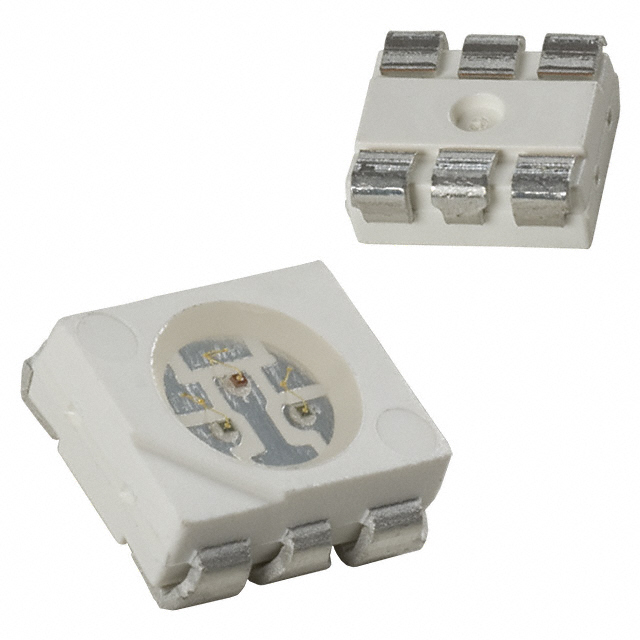

Sharp Microelectronics GM5WA06250A is a discrete RGB LED housed in a 6-SMD, J-Lead package. This surface-mount component offers independent control of Red, Green, and Blue emitters, each with a forward voltage of 2.3V (Red) and 4.2V (Green/Blue) at a test current of 40mA. The LED features a clear, colorless lens with a round, flat-top design and a 6.00mm L x 5.00mm W footprint, with a maximum height of 2.40mm. Dominant wavelengths are 628nm for Red, 520nm for Green, and 469nm for Blue, achieving a typical luminous intensity of 1450mcd for each color. This component is suitable for applications in consumer electronics, industrial automation, and automotive lighting. The GM5WA06250A is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 6.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1450mcd Red, 1450mcd Green, 1450mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 4.2V Green, 4.2V Blue |
| Lens Color | Colorless |
| Current - Test | 40mA Red, 40mA Green, 40mA Blue |
| Viewing Angle | - |
| Height (Max) | 2.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 628nm Red, 520nm Green, 469nm Blue |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
