GM5WA06200Z
LED RGB CLEAR CHIP T/HManufacturer: Sharp Microelectronics
Categories: LED Indication - Discrete
Quality Control: Learn More

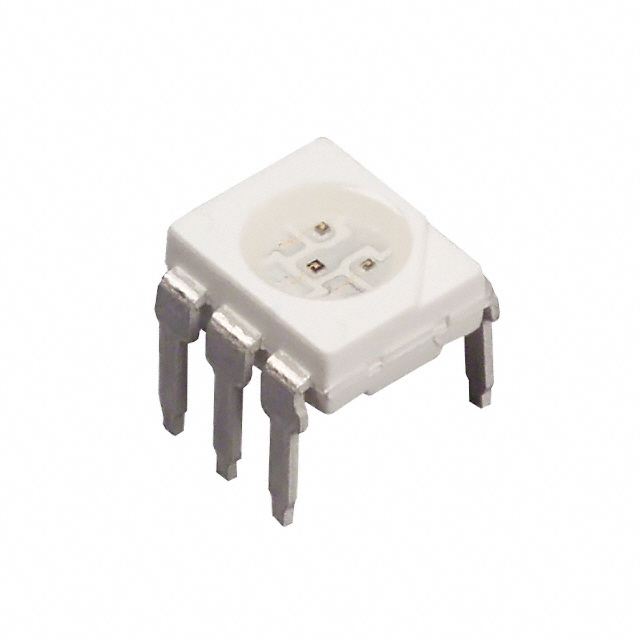

Sharp Microelectronics GM5WA06200Z is a through-hole mounted, discrete RGB LED with independent emitters. This component features a 6-DIP package with a 0.600" (15.24mm) pitch. The clear, colorless lens has a round with flat top style and a 4.00mm diameter. Each individual LED within the RGB configuration offers specific characteristics: the red emitter has a dominant wavelength of 631nm (peak 639nm) and a forward voltage of 2V, while the green emitter operates at 520nm dominant wavelength (peak 519nm) with a 4.5V forward voltage. The blue emitter's dominant wavelength is 469nm (peak 466nm), also requiring a 4.5V forward voltage. All emitters are rated for 40mA test current and provide distinct luminous intensities: 300mcd for red, 500mcd for green, and 150mcd for blue, with a typical viewing angle of 120°. This LED is suitable for industrial automation, signaling, and display applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 6-DIP (0.600"", 15.24mm) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 6.00mm L x 5.00mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 300mcd Red, 500mcd Green, 150mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Red, 4.5V Green, 4.5V Blue |
| Lens Color | Colorless |
| Current - Test | 40mA Red, 40mA Green, 40mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 639nm Red, 519nm Green, 466nm Blue |
| Wavelength - Dominant | 631nm Red, 520nm Green, 469nm Blue |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
