GM4WA25300A
LED RGB SMDManufacturer: Sharp Microelectronics
Categories: LED Indication - Discrete
Quality Control: Learn More

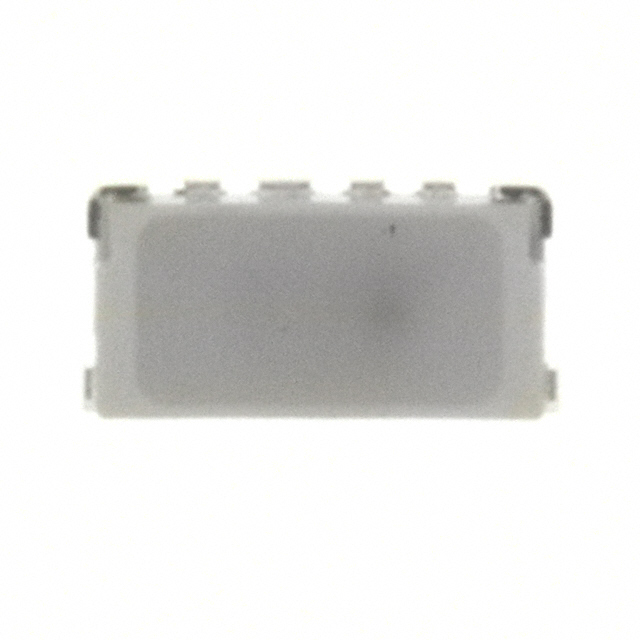

Sharp Microelectronics GM4WA25300A is an 8-SMD packaged, surface-mount RGB LED indication component. This discrete component offers independent control of Red, Green, and Blue light emission. Typical forward voltage specifications are 2.3V for Red and 3.3V for Green and Blue, with test currents of 21mA (Red), 25mA (Green), and 7mA (Blue). The component measures 5.00mm in length and 2.50mm in width, with a maximum height of 2.50mm. The lens style is a rectangle with a flat top. This component is commonly utilized in applications requiring visual status indication within industrial automation, consumer electronics, and automotive systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 5.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 3.3V Green, 3.3V Blue |
| Lens Color | - |
| Current - Test | 21mA Red, 25mA Green, 7mA Blue |
| Viewing Angle | - |
| Height (Max) | 2.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
