GL381
EMITTER IR 950NM 60MA T-1Manufacturer: Sharp Microelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Sharp Microelectronics GL381 Infrared (IR) Emitter. This T-1 package component features a 950nm wavelength and a 26° viewing angle. It operates with a typical forward voltage (Vf) of 1.3V and a maximum DC forward current (If) of 60mA. At 50mA, the radiant intensity (Ie) is a minimum of 8.5mW/sr. The GL381 is designed for through-hole mounting and has an operating temperature range of -25°C to 85°C. This component finds application in various optical sensing and control systems across industries such as automotive, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | T-1 |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 26° |
| Current - DC Forward (If) (Max) | 60mA |
| Radiant Intensity (Ie) Min @ If | 8.5mW/sr @ 50mA |
Request a Quote
Clients Also Buy
GL100MD0MP1
EMITTER IR 940NM 50MA SMD

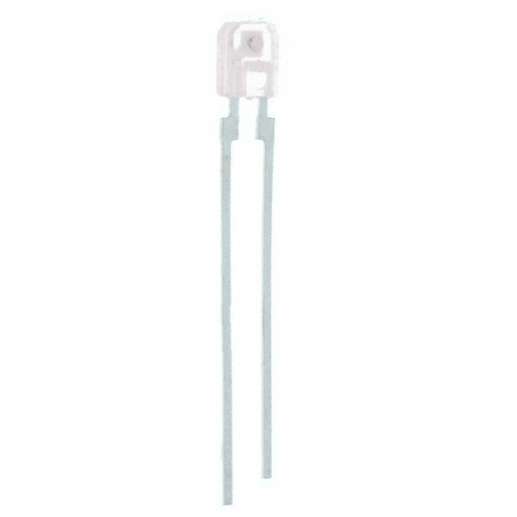

GL4800E0000F
