GW5SGD30P05
LED COB PETITE ZENIGATA WHT RECTManufacturer: Sharp Microelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

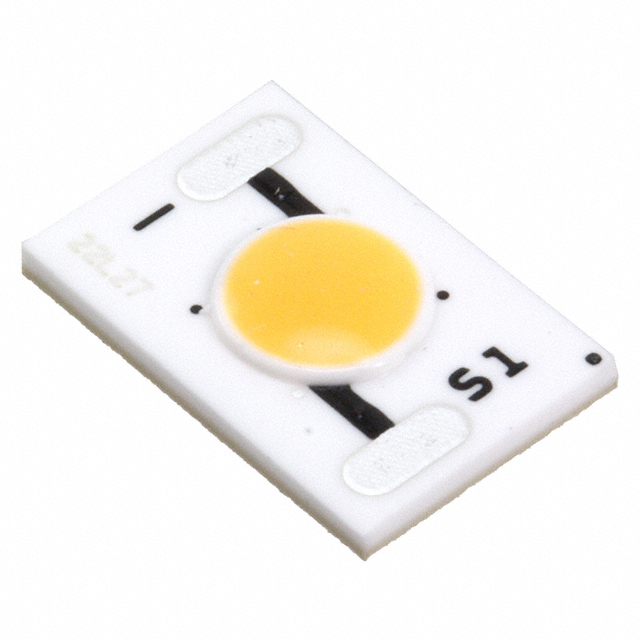

Sharp Microelectronics GW5SGD30P05, a Chip On Board (COB) LED module from the Petite Zenigata series, offers a warm white illumination with a correlated color temperature (CCT) of 3000K. This rectangular configuration features a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. Designed for efficient operation, it has a typical forward voltage of 9.6V and a maximum current rating of 560mA, with a tested luminous efficacy of 69 lm/W at 500mA. The module delivers a typical luminous flux of 330 lumens and measures 8.00mm in length by 12.00mm in width, with a low profile of 1.80mm. This component is suitable for applications in general lighting and display illumination. The GW5SGD30P05 is supplied in trays.
Additional Information
Series: Petite ZenigataRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 8.00mm L x 12.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 9.6V |
| Height | 1.80mm |
| Current - Test | 500mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 560mA |
| Lumens/Watt @ Current - Test | 69 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 330lm (Typ) |
