GW5DLC50M04
LED MOD COOL WHT RECT 5000KManufacturer: Sharp Microelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Sharp Microelectronics GW5DLC50M04 is a high-performance LED module designed for demanding lighting applications. This cool white rectangular module operates at a correlated color temperature (CCT) of 5000K with a typical color rendering index (CRI) of 80. The unit delivers a luminous flux of 2600lm (Typ) at a test current of 700mA, achieving 100 lm/W. Maximum operational current is rated at 1.05A, with a typical forward voltage (Vf) of 37V. The module features a 8.60mm diameter light-emitting surface (LES) and a flat lens. Measuring 24.00mm L x 20.00mm W with a height of 1.80mm, this component is suitable for use in general lighting, architectural lighting, and industrial lighting systems. The GW5DLC50M04 is supplied in trays.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 24.00mm L x 20.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 37V |
| Height | 1.80mm |
| Current - Test | 700mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 100 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 8.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2600lm (Typ) |
Request a Quote
Clients Also Buy
GW6BME30HED
LED COB MINI ZENIGATA RECT

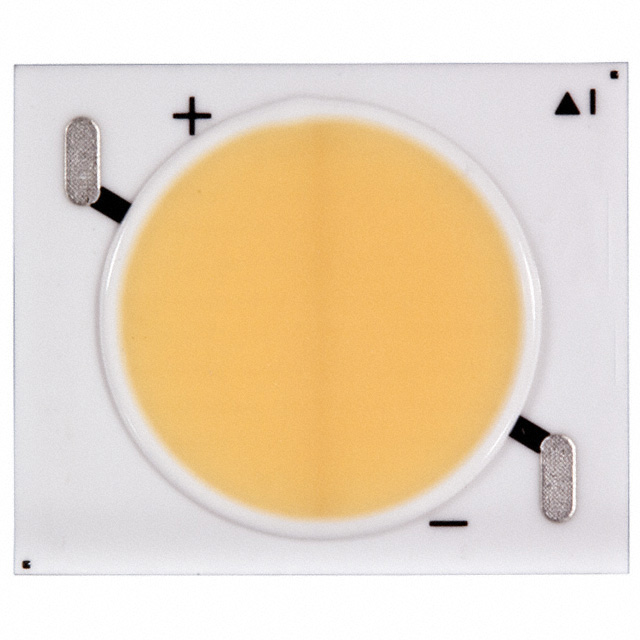

GW6DAA40NFC
