GW5BNF15L10
LED COB COOL WHT SQUARE 6500KManufacturer: Sharp Microelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

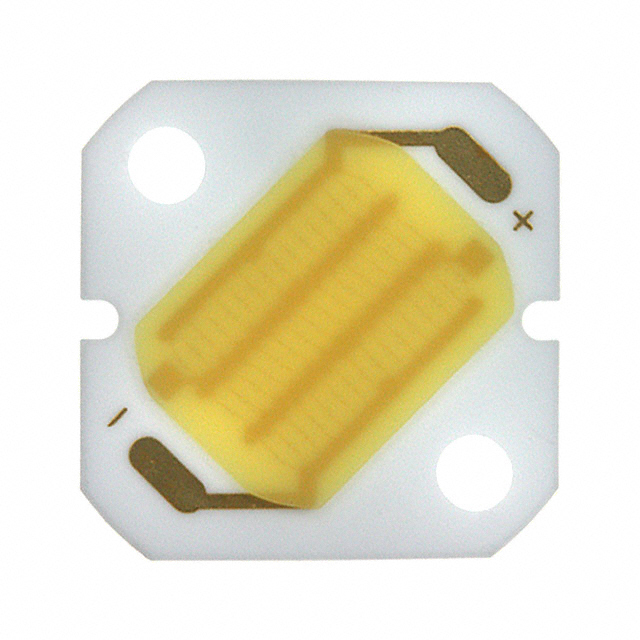

The Sharp Microelectronics GW5BNF15L10 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This cool white LED offers a color temperature of 6500K and a square light-emitting surface with dimensions of 18.00mm x 18.00mm. It operates with a maximum forward current of 700mA and a typical forward voltage of 10.2V, delivering 350 lumens (Typ) at a luminous efficacy of 54 lm/W (at 640mA test current). The module features a flat lens and a low profile of 2.00mm, making it suitable for integration into compact luminaire designs. Its robust construction, packaged in trays, supports use in automotive, industrial, and general illumination sectors requiring efficient and reliable solid-state lighting solutions.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 18.00mm L x 18.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 10.2V |
| Height | 2.00mm |
| Current - Test | 640mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 54 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 350lm (Typ) |
