GW5BNC15L12
LED COB COOL WHT SQUARE 6500KManufacturer: Sharp Microelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

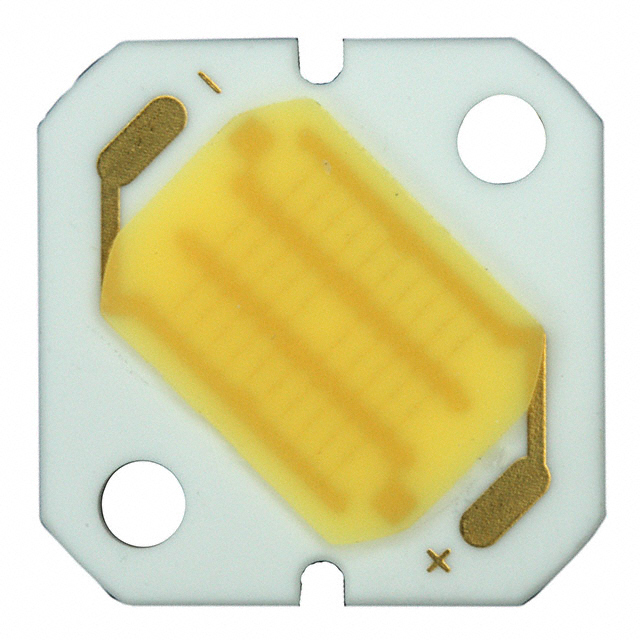

Sharp Microelectronics GW5BNC15L12 is a Cool White Chip On Board (COB) LED module. This component features a square light-emitting surface (LES) with a correlated color temperature (CCT) of 6500K. It operates at a typical forward voltage of 10.2V and a maximum current of 360mA, delivering a luminous flux of 170 lumens at 360mA. The module achieves 46 lumens per watt at the test current. Its dimensions are 18.00mm x 18.00mm with a height of 2.00mm and a flat lens. This COB LED is suitable for general lighting applications, automotive lighting, and industrial illumination systems. The component is supplied in trays.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 18.00mm L x 18.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 10.2V |
| Height | 2.00mm |
| Current - Test | 360mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 360mA |
| Lumens/Watt @ Current - Test | 46 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 170lm (Typ) |
