LS013B4DN04
GRAPHIC DISPLAY TFT BLACK 1.3Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

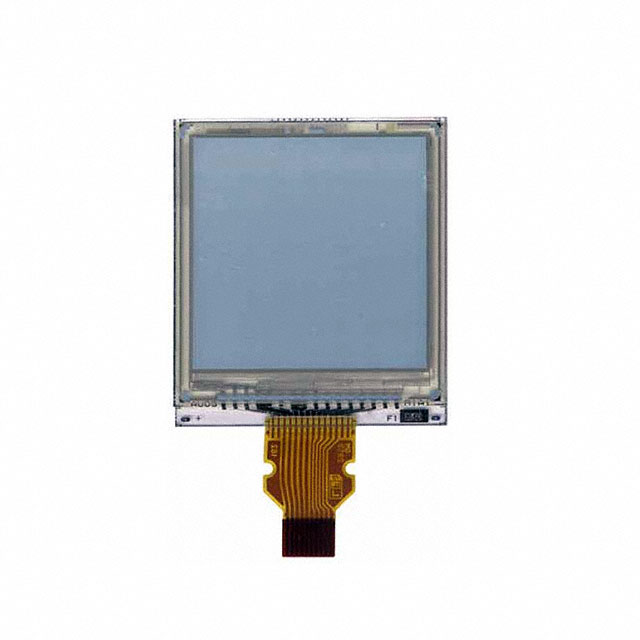

Sharp Microelectronics LS013B4DN04 is a monochrome TFT graphic display module featuring a 1.3-inch diagonal screen size with a 96 x 96 pixel resolution. This reflective display provides a black-on-gray visual output without a backlight, making it suitable for low-power applications. The serial interface simplifies integration into various systems. The viewing area measures 24.19mm wide by 24.19mm high. This component is commonly utilized in portable devices, industrial controls, and instrumentation requiring clear, low-power graphical representation. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Monochrome |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Serial |
| Viewing Area | 24.19mm W x 24.19mm H |
| Dot Pixels | 96 x 96 |
| Diagonal Screen Size | 1.3"" (33.02mm) |
| Background Color | Gray |
| Graphics Color | Black |
| Touchscreen | - |
