LQ121S1DG41
GRAPHIC DISPLAY TFT RGB 12.1Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

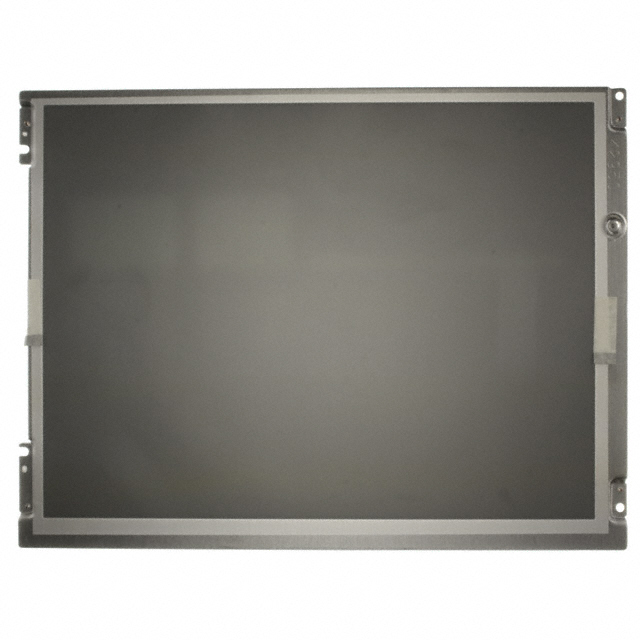

Sharp Microelectronics LQ121S1DG41 is a 12.1-inch Transmissive TFT-Color graphic display module. This SVGA resolution (800 x 600) display provides Red, Green, and Blue (RGB) graphics via an 18-bit Parallel RGB interface. It features a CCFL backlight and a viewing area of 246.00mm W x 184.50mm H. This component is suitable for applications in industrial control, medical instrumentation, and digital signage. The LQ121S1DG41 is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | CCFL |
| Interface | Parallel, 18-Bit (RGB) |
| Viewing Area | 246.00mm W x 184.50mm H |
| Dot Pixels | 800 x 600 (SVGA) |
| Diagonal Screen Size | 12.1"" (307.34mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
