LQ104S1DG21
GRAPHIC DISPLAY TFT RGB 10.4Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

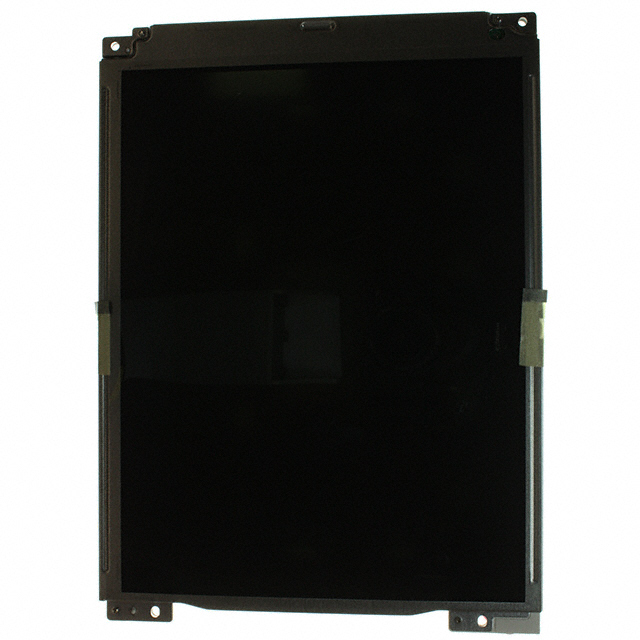

Sharp Microelectronics LQ104S1DG21 is a 10.4-inch (264.16mm) SVGA (800 x 600) Thin-Film Transistor (TFT) Color Graphic LCD display module. This transmissive display features an RGB color palette with an 18-bit parallel interface for direct data input. The module utilizes a CCFL backlight for illumination. Key specifications include a 211.20mm W x 158.40mm H viewing area. This component is suitable for applications in industrial control, medical equipment, and test and measurement instrumentation.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | CCFL |
| Interface | Parallel, 18-Bit (RGB) |
| Viewing Area | 211.20mm W x 158.40mm H |
| Dot Pixels | 800 x 600 (SVGA) |
| Diagonal Screen Size | 10.4"" (264.16mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
