LQ084V1DG21
GRAPHIC DISPLAY TFT RGB 8.4Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

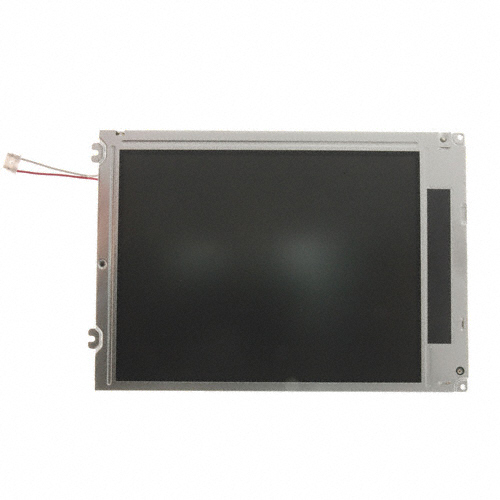

Sharp Microelectronics LQ084V1DG21 is an 8.4-inch (213.36mm) transmissive TFT-LCD graphic display module with a resolution of 640 x 480 (VGA). This color display features an 18-bit RGB parallel interface for precise color reproduction. The module utilizes CCFL backlighting to illuminate the viewing area, which measures 170.90mm wide by 129.60mm high. Designed for demanding visual applications, this display is commonly integrated into industrial control systems, medical equipment, and automotive infotainment units where clarity and reliable color representation are critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | CCFL |
| Interface | Parallel, 18-Bit (RGB) |
| Viewing Area | 170.90mm W x 129.60mm H |
| Dot Pixels | 640 x 480 (VGA) |
| Diagonal Screen Size | 8.4"" (213.36mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
